TUBELESS CLAMP-IN VALVE-TRUCK & BUS (GROMMET TYPE) – TR 500 SERIES - Triton India | Challenging Excellence

PRODUCT TYPE		VALVE HOLE SIZE	A	B	C	ACCESSORIES
TRITON	TR	VALVE HOLE SIZE	A	B	C	CORE	CAP

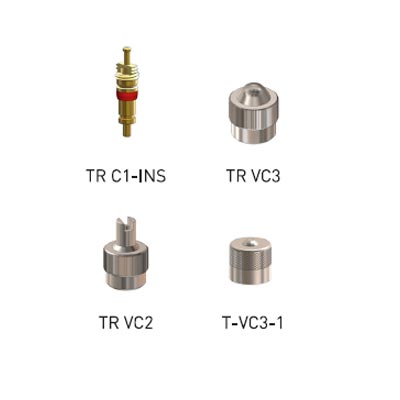

TR 575	575	Ø 15.7 ^+0.4	29	-	-	TR C1-INS	T-VC3-1 TR VC2 TR VC3 TR VC8
TR 501	501		38	-	-
TR 500	500		51	-	-
TR 570	570		79	-	-
TR 571	571		86	-	-
TR 572	572		95	-	-
TR 573	573		111	-	-
TR 574	574		127	-	-
TR 570 C	570 C		-	51	33
TR 571 C	571 C		-	58	33
TR 572 C	572 C		-	67	33
TR 573 C	573 C		-	83	33
TR 574 C	574 C		-	99	33
